#ALP-016F House Plan

This two-story Mediterranean waterfront house plan has three bedrooms, two and a half bathrooms, and a two-car garage. The towering covered entrance has an arched transom accent. Compact design makes use of every inch. The contemporary open floor plan layout gives this house spacious appeal. Huge island kitchen with eating bar and pantry is open to Family Room. Master Suite with large his and her walk-in-closets has a luxurious Master Bath.

3 Sets	$750
5 Sets	$850
8 Sets	$1,000
Base Price (NOT for construction)	$650
CAD	$1,650
PDF	$1,150
Repro. Vellum	$1,150

Additional set for CAD	$500
Additional set for Printed plans (3 sets, 5 Sets, and 8 Sets)	$50
Additional set for Repro. Vellum and PDF	$150
Review Set (NOT for construction)	$150
Right Reading Reverse	$250

Ground (5-7 bus. days)	$30
Express (2-3 bus. days)	$45
Overnight	$60

Total Sqft.	1515

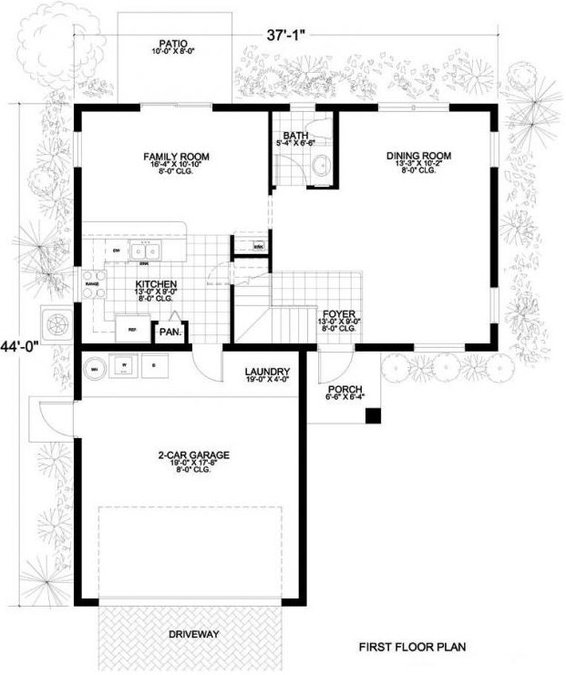

First Floor Sqft.	803

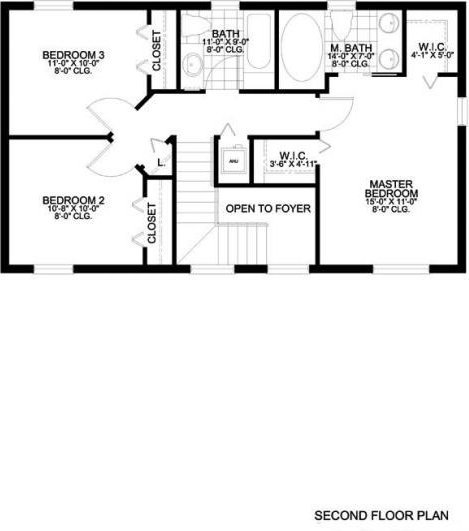

Second Floor Sqft.	712
Unheated Sqft.	634
Width	37
Depth	44
Levels	2
Bedrooms	4
Bathrooms	3
Garage	2 Car Spaces
Garage Sqft.	454
Ext. Walls	Concrete Block
Ext. Material	Stucco
Ridge Height	22-9
Roof Material	Cement Tile Tile
Roof Pitch	5/12
Roof Loads	Roof: Live Load 30 Roof: Dead Load 25
Main Ceiling	8
Master Bed Loc.	2
