#ALP-019D House Plan

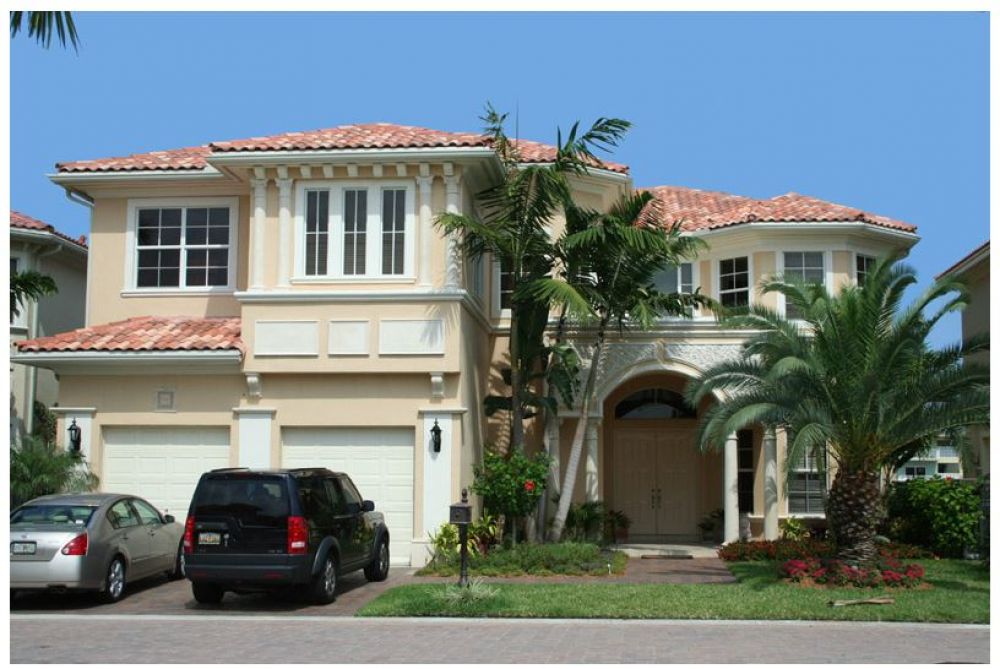

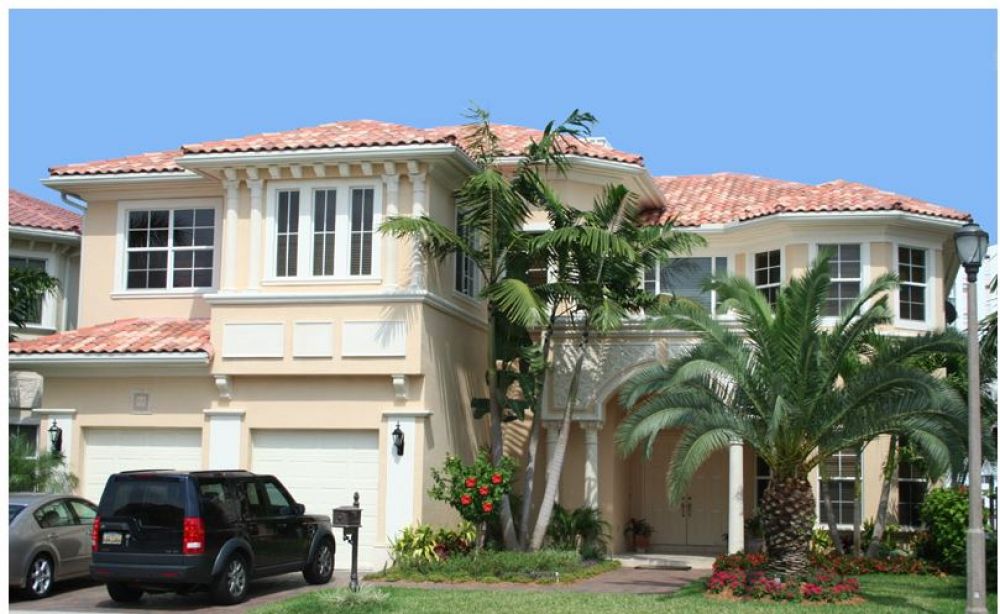

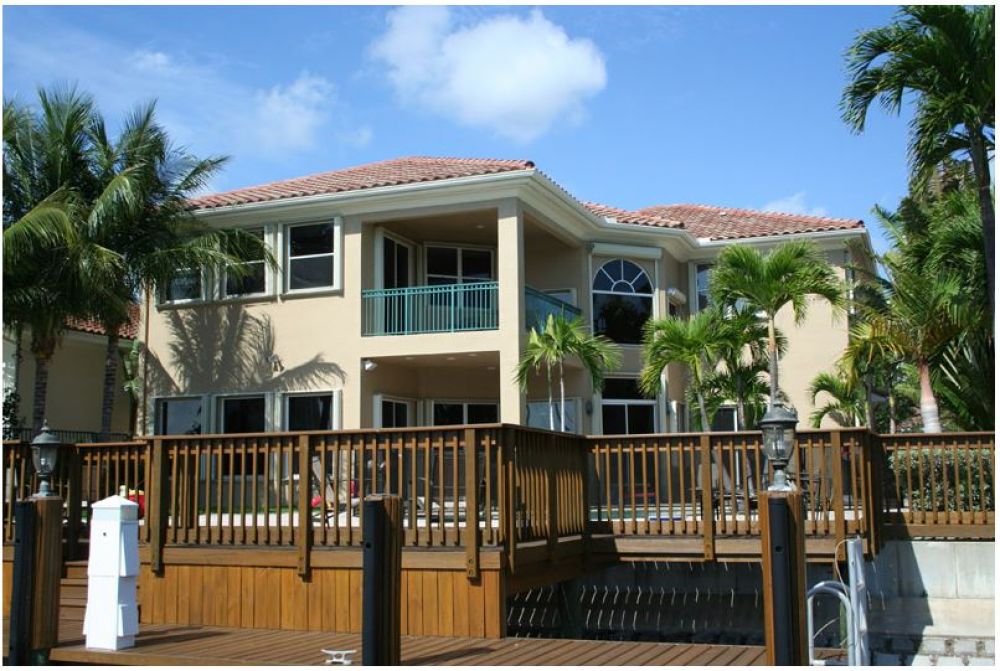

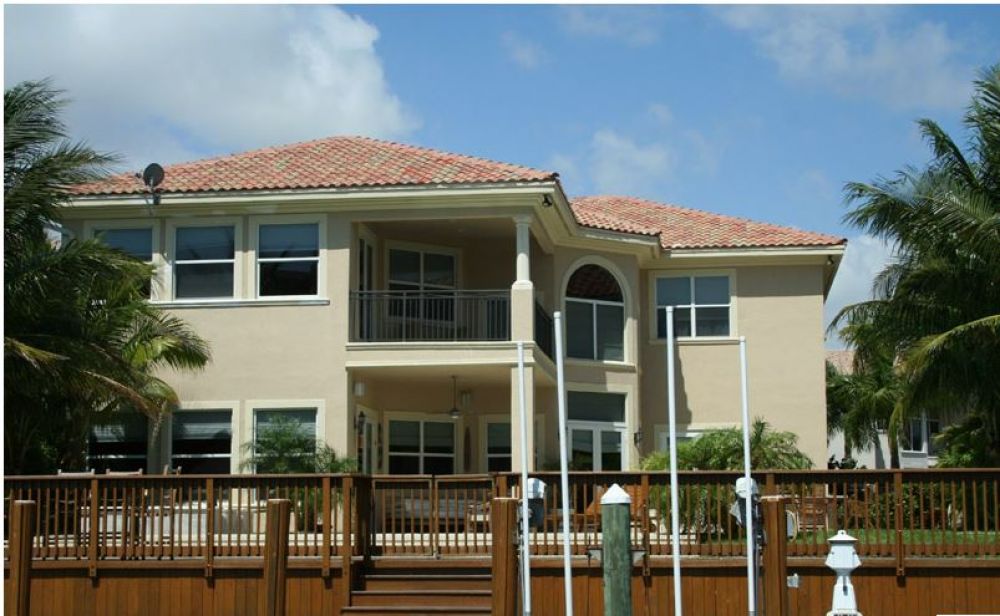

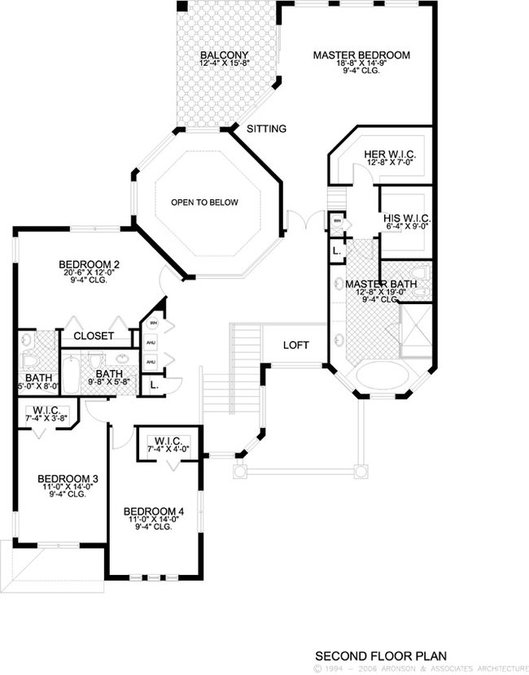

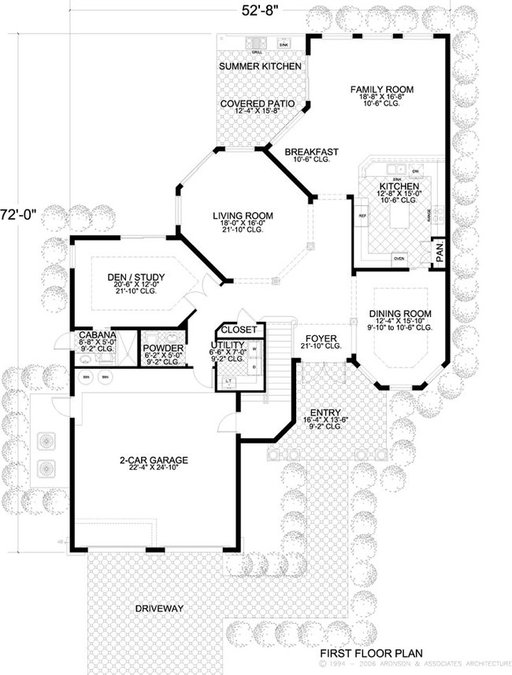

This two-story Mediterranean waterfront house plan features four bedrooms, three full bathrooms plus a half Bathroom, a Cabana, and a Two-car Garage. High ceilings and two-volume spaces make this floor plan feel larger than life. Gourmet island kitchen with eating bar, cafe, and pantry is open to the Family Room. You'll love this design if you're looking for a home with a spacious feel while also providing private areas for a little peace and relaxation. The formal Dining Room has tray ceilings. The family Room opens to a covered patio complete with a summer kitchen. The foyer opens to a large central area with Living Room adjacent to Kitchen and Family Room. This house plans design includes a luxurious Master Suite with his and hers walk-in closets, and a regal Master Bath with spa tub opens to a covered balcony.

3 Sets	$1,000
5 Sets	$1,100
8 Sets	$1,250
Base Price (NOT for construction)	$900
CAD	$2,100
PDF	$1,400
Repro. Vellum	$1,400

Additional set for CAD	$500
Additional set for Printed plans (3 sets, 5 Sets, and 8 Sets)	$50
Additional set for Repro. Vellum and PDF	$150
Review Set (NOT for construction)	$150
Right Reading Reverse	$250

Ground (5-7 bus. days)	$30
Express (2-3 bus. days)	$45
Overnight	$60

Total Sqft.	3869
First Floor Sqft.	1863
Second Floor Sqft.	2006
Width	52
Depth	72
Levels	2
Bedrooms	4
Garage	2 Car Spaces
Garage Sqft.	643
Ext. Walls	Concrete Block
Ext. Material	Stucco
Ridge Height	30-10
Roof Material	Cement Tile Tile
Roof Pitch	5/12
Roof Loads	Roof: Live Load 30 Roof: Dead Load 25
Master Bed Loc.	2
