#ALP-01B9 House Plan

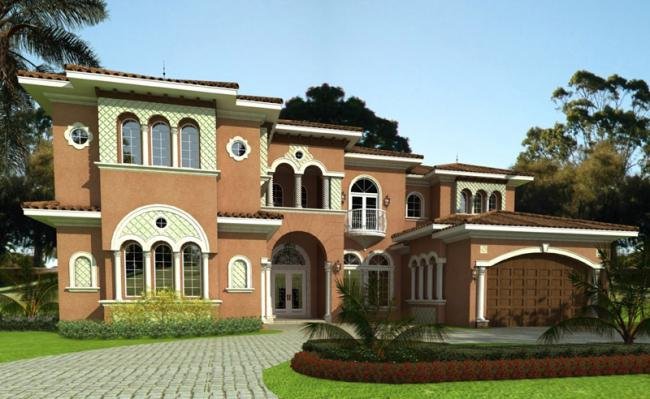

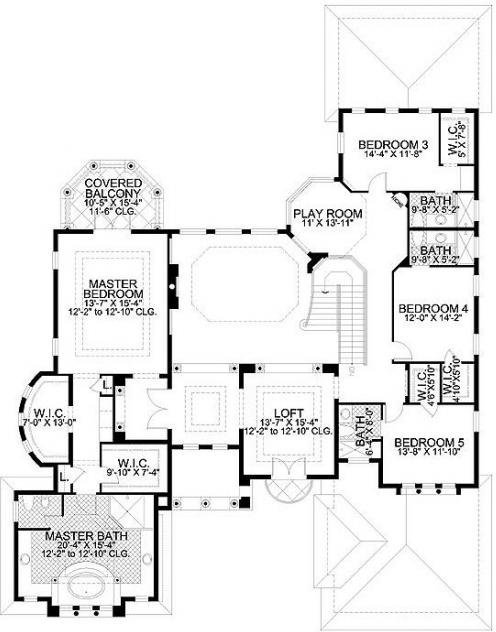

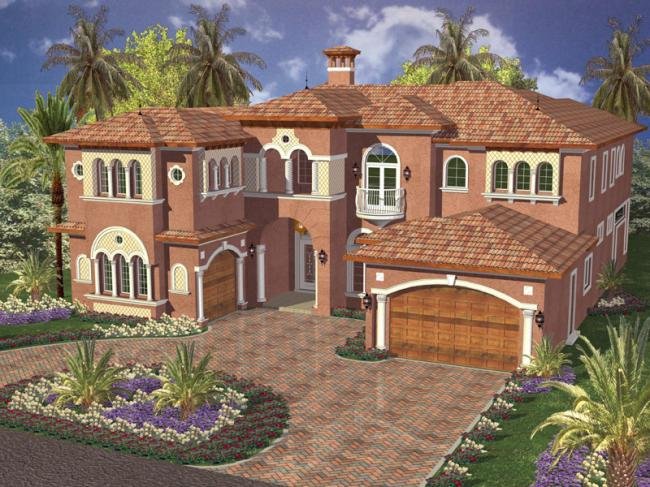

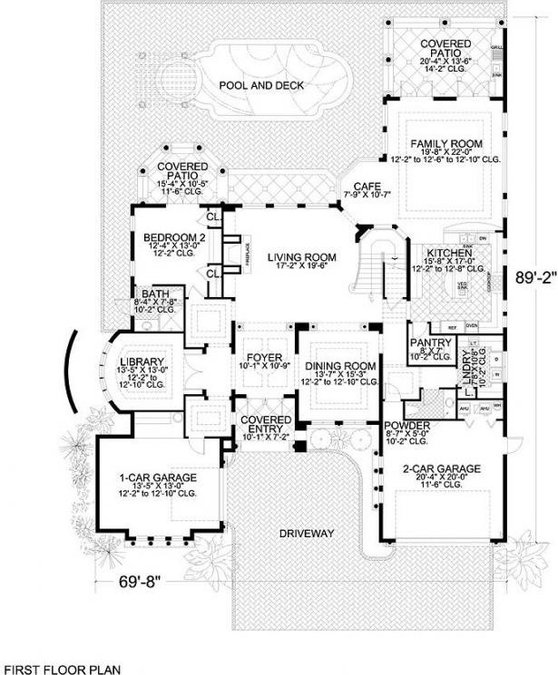

This beautiful waterfront two-story Spanish-style manor features five bedrooms, four and a half bathrooms plus a cabana, a two-car and a one-car garage, a covered entrance with an eight-foot french door, and an arched transom. Columns and arches call for a majestic appearance and a luxurious inside and out. The first floor provides a large living room with a high ceiling and fireplace, a family room opens to a covered patio with a summer kitchen, a designer island kitchen with an eating bar, cafe, and pantry, a formal dining room with arched opening, columns and raised coffered ceiling. The library provides a cozy retreat to entertain guests. The luxurious master suite on the second floor provides generous areas with enormous walk-in closets, tray ceilings, and a splendid master bathroom opened to a private covered balcony.

3 Sets	$1,400
5 Sets	$1,500
8 Sets	$1,650
Base Price (NOT for construction)	$1,300
CAD	$2,700
PDF	$1,800
Repro. Vellum	$1,800

Additional set for CAD	$500
Additional set for Printed plans (3 sets, 5 Sets, and 8 Sets)	$50
Additional set for Repro. Vellum and PDF	$150
Review Set (NOT for construction)	$150
Right Reading Reverse	$250

Ground (5-7 bus. days)	$30
Express (2-3 bus. days)	$45
Overnight	$60

Total Sqft.	5547
First Floor Sqft.	2818
Second Floor Sqft.	2729
Width	69
Depth	89
Levels	2
Bedrooms	5
Bathrooms	4
Half Bathrooms	1
Garage	3 Car Spaces
Garage Sqft.	877
Ext. Walls	Concrete Block
Ext. Material	Stucco
Ridge Height	34-3
Roof Material	Cement Tile Tile
Roof Pitch	5/12
Master Bed Loc.	2
