#ALP-016E House Plan

This two-story Mediterranean waterfront house plan has three bedrooms, two and one-half bathrooms. This unique floor plan design has a covered porch. The contemporary open layout gives this house spacious appeal. A combined large living room and dining room maximize space. The large kitchen opens to a family room. The spacious master suite has a large walk-in closet, luxurious master bathroom.

3 Sets	$700
5 Sets	$800
8 Sets	$950
Base Price (NOT for construction)	$600
CAD	$1,600
PDF	$1,100
Repro. Vellum	$1,100

Additional set for CAD	$500
Additional set for Printed plans (3 sets, 5 Sets, and 8 Sets)	$50
Additional set for Repro. Vellum and PDF	$150
Review Set (NOT for construction)	$150
Right Reading Reverse	$250

Ground (5-7 bus. days)	$30
Express (2-3 bus. days)	$45
Overnight	$60

Total Sqft.	1478

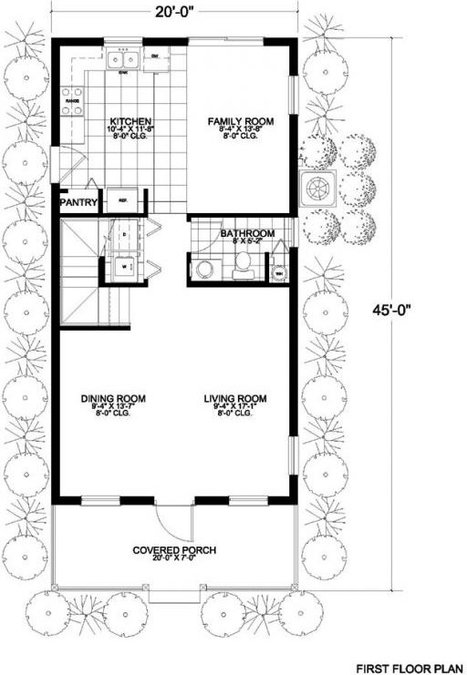

First Floor Sqft.	760

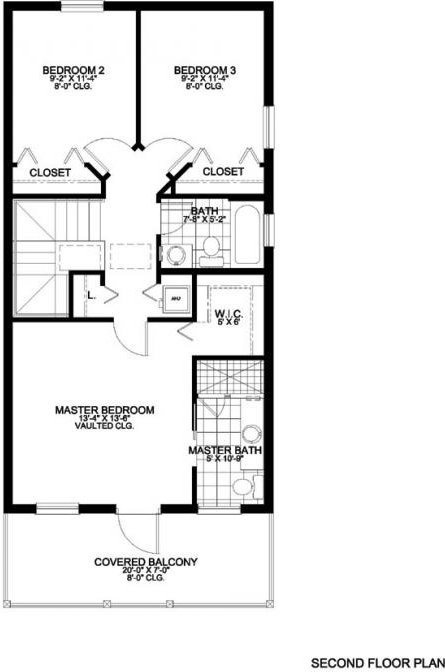

Second Floor Sqft.	718
Unheated Sqft.	375
Width	20
Depth	45
Levels	2
Bedrooms	3
Bathrooms	2
Ext. Walls	Concrete Block
Ext. Material	Stucco
Ridge Height	22-6
Roof Material	Cement Tile Tile
Roof Pitch	5/12
Roof Loads	Roof: Live Load 30 Roof: Dead Load 25
Ceiling Features	vault
Main Ceiling	8
Master Bed Loc.	2
