#ALP-1D4M House Plan

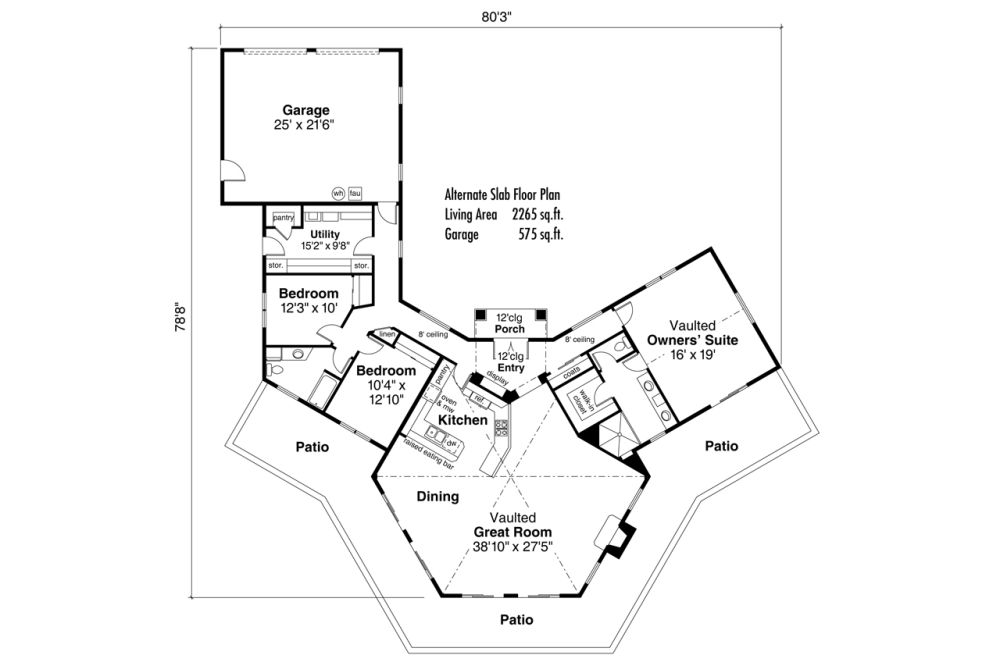

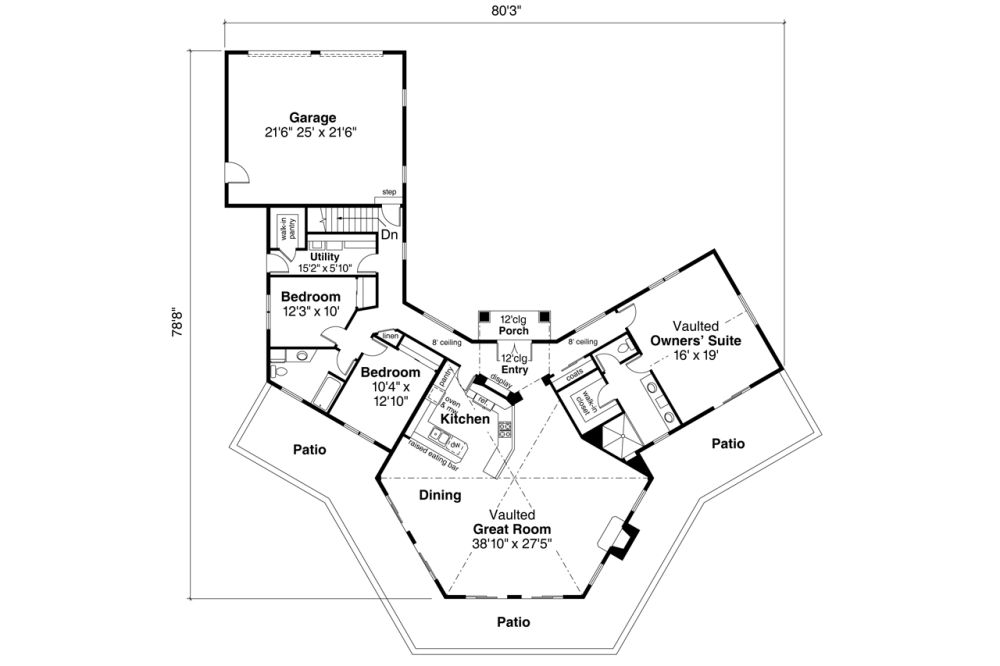

This Mediterranean house plan has a sunny look year round. The vaulted hexagonal great room at its core is awash in natural light streaming in through wide banks of glass in three walls, each crowned by arched transoms. A patio spans the entire rear. While working in the kitchen, you can keep tabs on activities inside and out. Bedrooms and utilities fill the wings.

1 Set (NOT FOR CONSTRUCTION)	$820
5 Set and Print PDF	$1,310
CAD Master	$2,305
Master Builder Set (CAD Masters, PDF Master, and Unlimited Build License)	$2,535
PDF Master	$2,150
Print PDF	$1,070

Additional Build License	$820
Additional Sets	$60
Alternate Basement Foundation	$540
Alternate Crawl or Slab Foundation	$415
Alternate Framing	$415
Right Reading Reverse	$355

Outside Continental US	Call for quote
Overnight	Call for quote
Standard (5-8 days)	$30
Priority (3-5 days)	$70

Total Sqft.	2265
First Floor Sqft.	2265
Unheated Sqft.	575
Width	80-3
Depth	78-8
Levels	1
Bedrooms	3
Bathrooms	2
Garage	2 Car Spaces
Garage Sqft.	575
Ext. Walls	2x6
Ext. Material	Stucco
Ridge Height	22-1
Roof Pitch	6/12
Roof Loads	70
Main Ceiling	8-0
Master Bed Loc.	1
